The semiconductor industry has been the backbone of modern technological advancement for decades. As artificial intelligence (AI) continues to integrate into daily applications, from smart home devices to industrial automation, chipmakers are evolving rapidly. A new era is dawning, one in which intelligence is embedded directly into silicon. By 2025, we aim to unlock the full potential of edge computing through AI integration.
Today, we explore the groundbreaking intersection of deep learning and semiconductors and how edge AI is transforming the very nature of hardware. We’ll examine current trends, real-world applications, and a pioneering project that reveals how a U.S.-based semiconductor manufacturer accelerated innovation by integrating convolutional neural networks (CNNs) directly into their hardware.
The Shifting Landscape of AI in Semiconductors
The Need for Edge Intelligence
- AI is no longer confined to the cloud. Real-time decision-making, bandwidth limitations, and privacy concerns have driven the demand for edge AI—where computations occur locally on the device rather than being sent to centralized data centers.
- In edge AI, semiconductor design takes on a critical role. Engineers must optimize power efficiency, memory usage, and processing speed while ensuring the chip can still handle the computational demands of modern machine-learning models.
- Edge intelligence enables devices such as smart speakers, industrial cameras, autonomous drones, and wearable healthcare monitors to make decisions promptly. It helps reduce latency, ensure uptime, and minimize reliance on continuous internet connectivity.
The Market Momentum
- According to Gartner, global revenue from AI chips is projected to reach $71.3 billion by 2024, representing a 33% year-over-year growth. Much of this growth is driven by demand for chips optimized for inferencing tasks on edge devices.
- The shift isn’t just about power or processing—it’s about enabling innovation. From autonomous vehicles to Smart surveillance, the ability to process data in real-time is crucial.
- Moreover, companies like NVIDIA, Qualcomm, Intel, and startups such as Hailo and Mythic are investing heavily in custom chips that support on-device AI. The competitive edge lies in marrying silicon with sophisticated, compact models that perform efficiently even under resource constraints.
A Real-World Solution: Building Intelligence into the Chip
The Challenge
A leading semiconductor manufacturer in the U.S. faced a unique challenge. Known for its microcontrollers, processors, and sensors, the company had recently developed a new line of chipsets optimized for edge AI applications. However, they lacked a tangible demonstration of their chips’ AI capabilities.
The Objective
To accelerate market adoption, they needed a proof-of-concept that showed the chipset’s potential in executing machine learning models—not in theory, but in a live, embedded system. They approached ACL Digital, a digital engineering firm, seeking a solution that was both practical and visionary.
The Deep Learning Implementation
- Step 1: Choosing the Right Model Architecture
ACL Digital selected Convolutional Neural Networks (CNNs) for this project due to their strength in image classification tasks. The specific use case: handwritten digit recognition, using the renowned MNIST dataset with over 50,000 labeled images.
- Step 2: Building the Model
Using the AlexNet architecture, the team trained the model in Caffe, an open-source deep-learning framework. The model was trained to recognize digits 0–9 with high accuracy, a perfect task to test the chipset’s neural processing efficiency.
- Step 3: Adapting for Edge Deployment
Once the model was trained, a Python script was created to export the model parameters. These parameters were then converted using the CMSIS-NN library, optimized for deployment on ARM Cortex-M processors.
- Step 4: Hardware Integration
The target device was NXP’s i.MXRT1062 microcontroller. The application, written in C, included image capture via a TFT display, digit resizing, and inference execution using the converted model.
- Step 5: Performance Tuning
Engineers fine-tuned AlexNet layers and parameters to reduce computational load without compromising accuracy. Over 10,000 test images were used to validate real-world performance on the embedded platform.
Visual Workflow: From Data to Inference

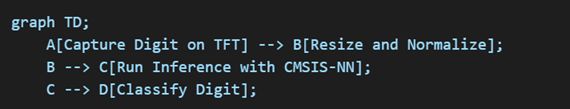

To simplify, here’s the step-by-step flow of the system:
- Capture: Digit image captured using TFT
- Preprocess: Resize and normalize image
- Run Inference: Execute model using CMSIS-NN
- Classify: Digit output returned (0–9)

Benefits and Business Impact
- 30% Faster Time to Market
By deploying a ready-made AI demo, the semiconductor company significantly accelerated its product launch timelines.
- Enhanced Stakeholder Confidence
Hands-on AI application boosted internal and partner confidence in the chip’s edge computing capabilities.
- Reusable IP
The CNN framework and deployment workflow can now be reused across other chipsets or applications.
- Scalability Across Industries
This implementation blueprint can be tailored to a range of industrial use cases, enabling future scalability.
- Lower Development Costs
Having a pre-trained, validated model for edge deployment reduces both prototyping time and engineering expenses.
Emerging Innovations and the Future Landscape of Edge AI
Lightweight Architectures for On-Device Learning
With the rise of TinyML, developers are now creating machine learning models that require as little as 100KB of memory. These models can be trained off-device but run entirely on microcontrollers, opening new applications in wearables, consumer tech, and smart agriculture.
Examples:
- Google’s Edge TPU: Optimized for TensorFlow Lite models
- ARM Ethos-U55: Designed for ultra-low-power edge inference
- Open-source models like MobileNetV2 and SqueezeNet are becoming standard for resource-constrained environments**
Integration with IoT and 5G
The convergence of 5G and edge AI enables smart cities, real-time industrial inspection, and remote health monitoring. Low-latency communication combined with on-device intelligence ensures systems react in milliseconds without relying on cloud infrastructure.
Ethical AI at the Edge
As edge AI becomes pervasive, ensuring responsible use becomes critical. Engineers must embed explainability and fairness into models, particularly in safety-critical applications such as surveillance, diagnostics, and public infrastructure..
Tools like SHAP, LIME, and ONNX Explainable AI are starting to support lightweight edge deployments, helping developers debug and validate models more effectively.
Key Takeaways for Tech Professionals and Business Leaders
Whether you’re a product manager, AI researcher, or startup founder, here’s what to consider when integrating AI into your hardware:
- Prototype quickly with established datasets like MNIST or CIFAR-10 to validate edge inference.
- Choose the proper framework for deployment: CMSIS-NN, TensorFlow Lite Micro, or TVM, depending on the hardware.
- Understand the hardware-software co-design: AI is not just about algorithms. Deployment success hinges on tight integration with hardware constraints.
- Test early and often: Simulate real-world environments and edge cases to ensure robustness.
- Invest in interpretable models: For regulated industries, transparent decision-making is not optional.
Final Thoughts
The fusion of AI and semiconductor innovation isn’t a trend—it’s the new baseline. As we move into a future defined by intelligent devices, the companies that can embed machine learning directly into their hardware will lead to the next wave of disruption.
With the right blend of deep learning frameworks, hardware optimization, and real-world testing, even the most complex AI models can run efficiently at the edge. And for those bold enough to lead that charge, the rewards are tangible: faster launches, Smarter products, and a clear edge in an increasingly competitive market.
The era of intelligent semiconductors isn’t approaching. It’s already here—and the innovators building today will define the technological landscape of tomorrow.
